WISECO - PISTON KIT GRIZZLY/RAPTOR - 09100861
WISECO - PISTON KIT GRIZZLY/RAPTOR - 09100861
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding

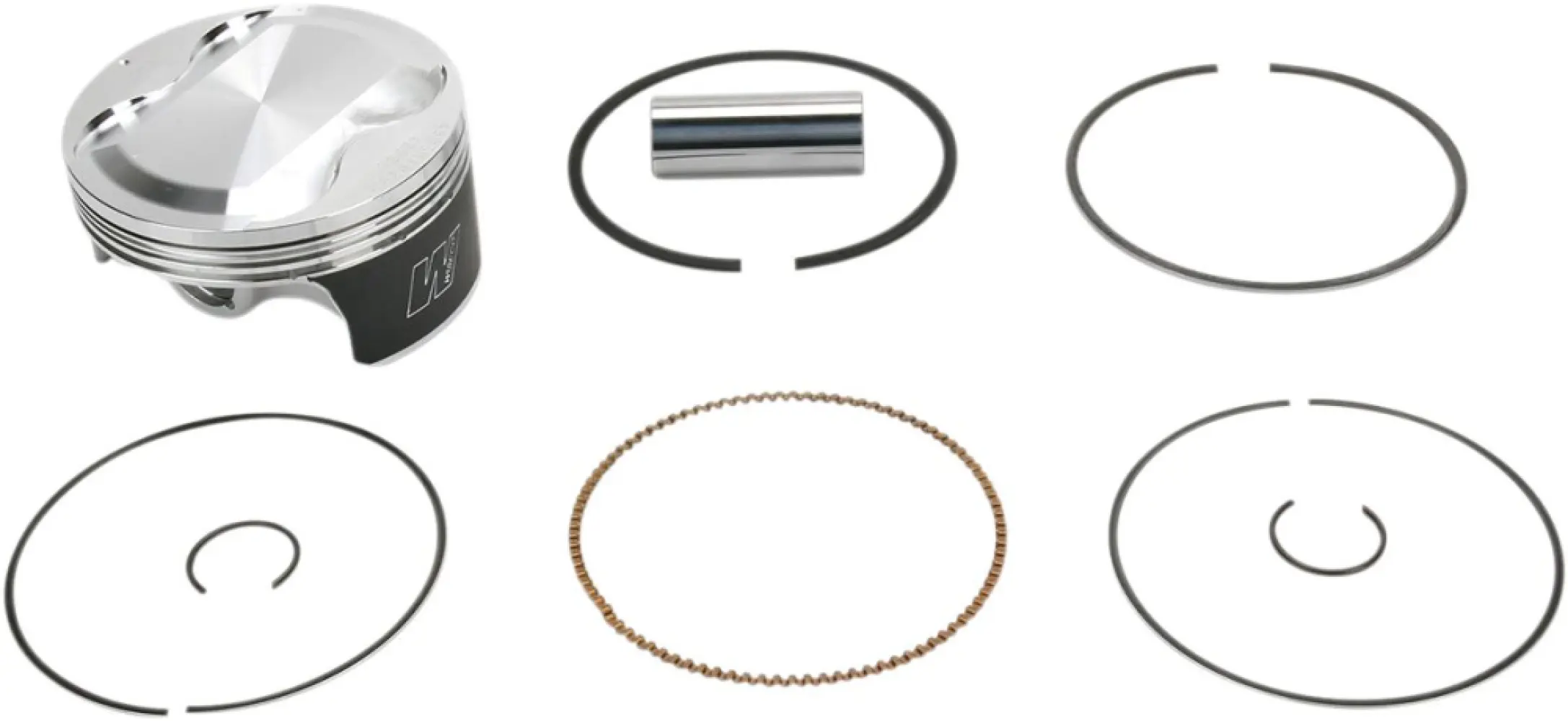

- Kit includes piston, wrist pin, rings and circlips
Specifications
| Brand | WISECO |
|---|---|
| Bore - Oversize Metric | Standard |
| Compression Ratio Imperial | 11.0:1 |
| Skirt Coating | ArmorGlide® |
| Piston Diameter | Standard |
| Research Value | Finalized |
| Riding Style | UTV , ATV |
| Piston Diameter Metric | Standard |
| Bore Size Metric | 102.00 mm |
| Compression Ratio | 11,0:1 |
| Engine Type | 4-Stroke |
|---|---|
| Units | Kit |
| Product Name | Piston Kit |
| Model | Forged Series |
| Bore Size | 102,00 mm |
| Displacement | 686 cc |
| Bore - Oversize | Standard |
| Stroke Length | 84,00 mm |
| Piston Material | Forged 2618 Aluminum |
| Stroke Length Metric | 84.00 mm |
