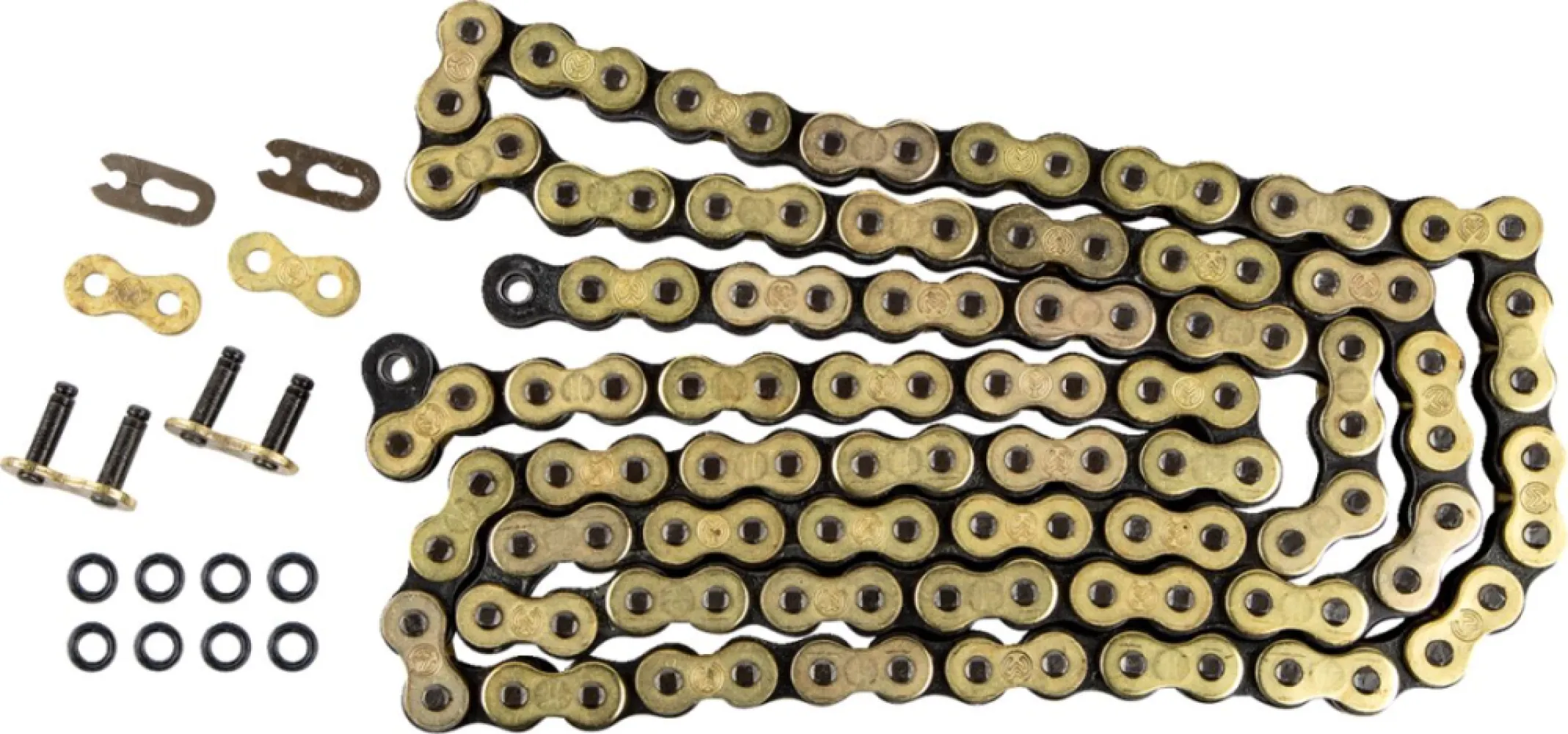

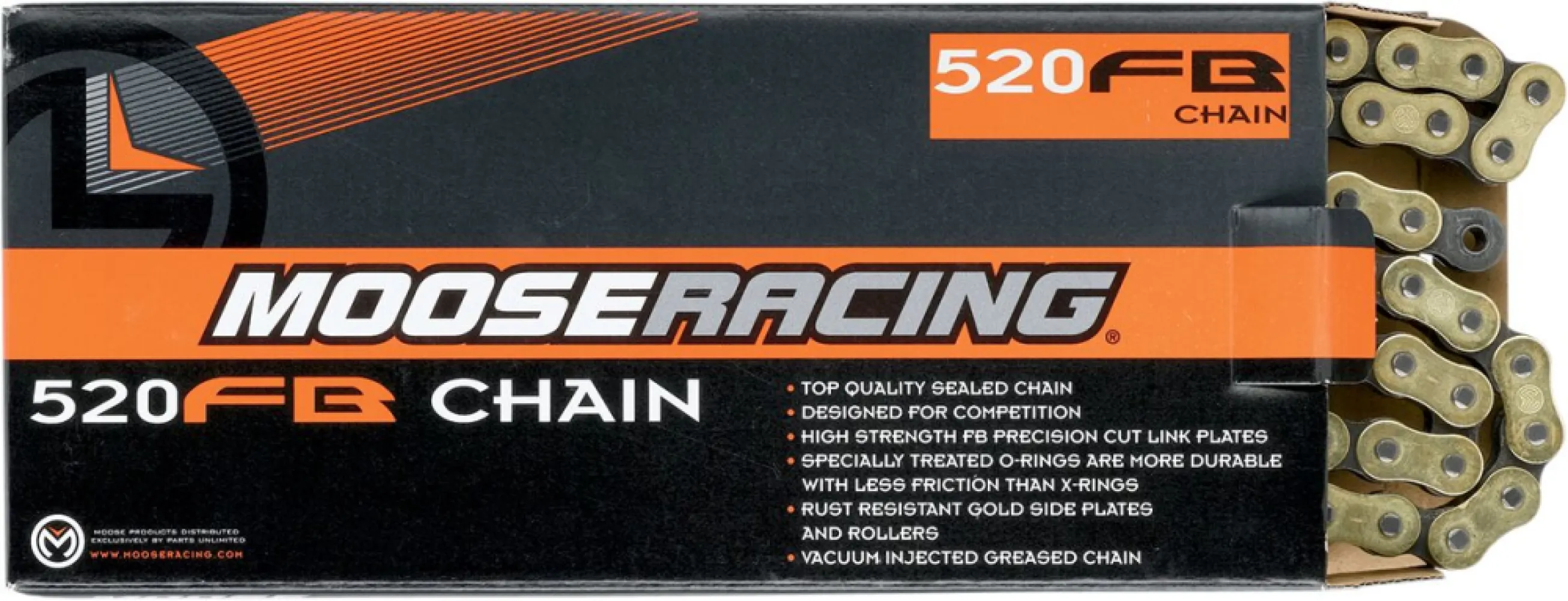

HomeMOOSE OFFROAD HARD-PARTS - CHAIN DRV MSE FB 520-116 - 12220102

MOOSE OFFROAD HARD-PARTS - CHAIN DRV MSE FB 520-116 - 12220102

152,-incl. VAT

152,-incl. VAT

This is the top of the line; the strongest, most durable sealed chain that we offer
FB = Fine Blanking, an incredibly precise manufacturing process that yields perfectly cut links
Tight tolerances make the plate, pin, and bushing union accurate and strong
Due to the accuracy of the cuts and the use of stronger alloyed steel, the FB has our highest tensile strength rating, nearly 8,000 lb.
Special sealing rings are chemically treated to gain strength and reduce friction
The FB treatment allows the O-rings to be impregnated with grease
FB rings are stronger and more durable than X-rings, with significantly less friction

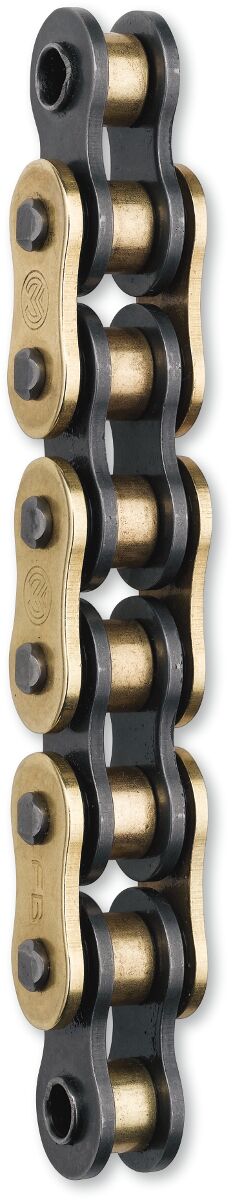

Gold links and rollers, silver inner plates, pins and bushings
Clip-type connecting link included
Recommended for applications 450cc and above
Replacement connecting link available
EU: Due to the accuracy of the cuts and the use of stronger alloyed steel, the FB has our highest tensile strength rating, nearly 3628,74 kg

Specifications

Type	Chain
LINKS	116
SEAL TYPE	FB-Ring
TENSILE STRENGTH	35,3 kN (7937 lb)
Master Link Connector Type	Clip
MAX ENGINE CC OFFROAD	750 cc
Research Value	Finalized
Riding Style	UTV , Off-Road , ATV , Street , Adventure Touring / Dual-Sport
Tensile Strength Metric	35.3 kN
Tensile Strength Imperial	7937 lb
Number of Links	116

Chain Size	520
Brand	MOOSE OFFROAD HARD-PARTS
Units	Each
Color/Finish	Gold
Product Name	Drive Chain
Material	Steel
CHAIN TYPE	520 FB
SIZE	520
Model	FB Series
COLOR	Gold
Maximum Engine Displacement (Offroad)	750 cc
